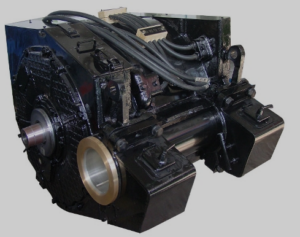

Traction motors ZQ – 520 (YZ95A)
Parameter Value Model YZ95A Alternating current Current Type Try it out | 15 minute session Rated Power (kW) 515 | 645 Rated Voltage (V) 1465 | 1385 Rated Current (A) 380 | 510 Rated Speed (rpm) 680 | 580 Method ...

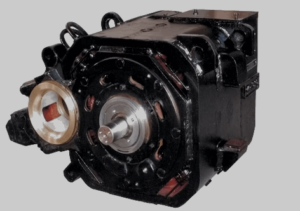

Traction motor ZQ-21
Parameter Value Rated Power 20.6 KW Rated Voltage 250 V Rated Current 95 A Rated Rotations 600 r/min Maximum Current 190 A Highest Rotations 1400 r/min Insulation Class B (High Class) Excitation Way Series Cooling Type IC 40/Enclosed Self-Cooled Type ...
Traction motor ZQ-30
Parameter Value Rated Power 30 KW Rated Voltage 250 V Rated Current 134 A Maximum Current 268 A Rated Rotations 1435 r/min Highest Rotations 3014 r/min Insulation Class B Excitation Way Series Cooling Type IC 40/Enclosed Self-Cooled Type Weight 400 ...

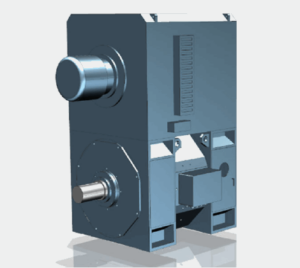

DC Motors Z series
Parameter Value Rated Power 50kW – 3,500kW Rated Voltage 220 - 1000V Rated Rotations 72 r/min Highest Rotations 1692 r/min Frame size 315 – 900, horizontal Cooling Type IC17, IC37, ICW37A86 The Z Series DC motors are high-performance electric motors ...

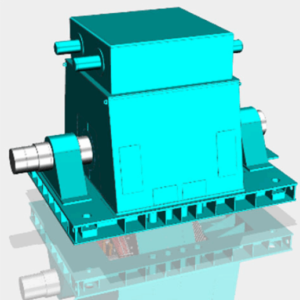

Large AC Synchronous motors TD series
Parameter Value Rated Power 500kW – 70MW Rated Voltage Up to 13.8kV ≥ 4 poles 50Hz / 60Hz Frame size Custom design available for various applications Cooling Type ODF, TEAAC, TEWAC, WPI, WPII The TD Series large AC synchronous motors ...
Diesel Engine TF Series
Parameter Value Rated Power 220 - 50,000kW Rated Voltage Up to 13.8kV Frequency 50Hz / 60Hz Frame size Custom design Poles 4 - 88 poles The TF Series diesel engines are high-performance, durable, and reliable engines designed to meet the ...
Our Products
We offer a wide range of high-quality, reliable, and efficient industrial equipment, including traction motors, diesel engines, and synchronous motors. Designed for heavy-duty applications across various sectors, our products ensure optimal performance, durability, and energy efficiency. Whether you need power solutions for transportation, manufacturing, or power generation, our products are built to meet the most demanding operational requirements.
